Wiring Diagrams

Disclaimer:
These wiring diagrams were collected from various online sources, forums, and community posts. I’ve done my best to gather useful examples, but I cannot verify their accuracy or safety. Use them at your own risk. I am not responsible for any damage, injury, or issues that may result from their use.

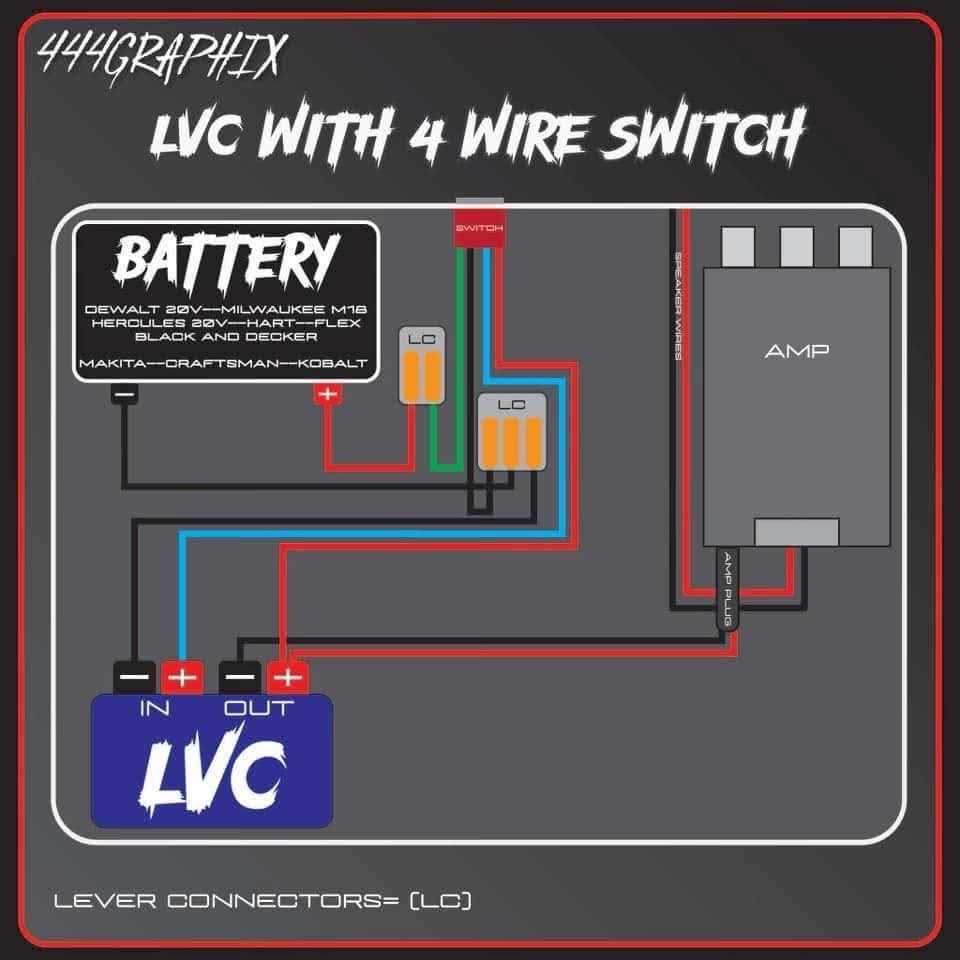

Basic tool battery build with Low Voltage Cutoff

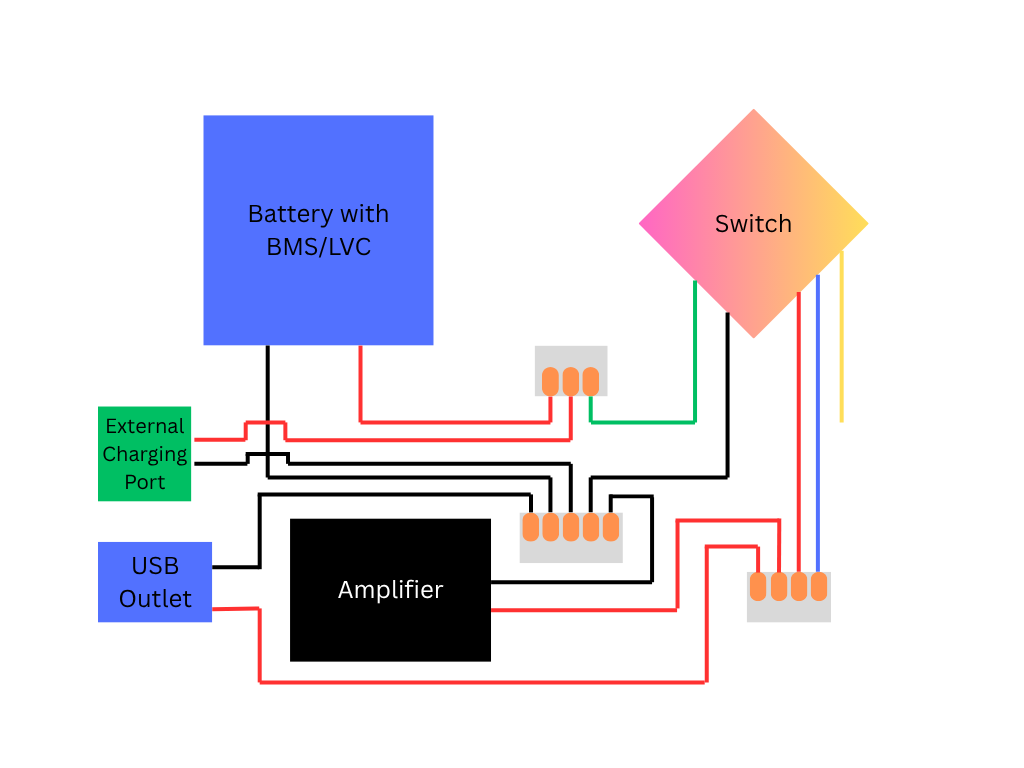

Battery with BMS (no LVC needed) with external charging port and USB outlet
